UV/IR Flame Detector

The SENSE-WARE UV/IR Flame Detector is a combination of an Ultraviolet- and Infrared- Flame detector which utilizes a microprocessor for sophisticated electronic signal analysis. The IR part of the flame detector has an additional alarm criterion: the analysis of the flame flicker- frequency. The UV and the IR sensor must both exceed their alarm threshold to initiate a fire alarm. The UV/IR Flame Detector has good false alarms rejection capabilities because the Ultraviolet sensor and the Infrared sensor do not share false alarm sources. The UV/IR Flame Detector can therefore be applied in areas where single UV or IR flame detectors could potentially cause false and/or unwanted alarms. To prevent unwanted alarms, the dynamic delay time for an alarm is 4-8 seconds depending on the size and or the distance to the flames. The UV/IR Flame Detector is suitable for applications that include Hydrogen but in fact, every flame that emits hot water will be detected. A self-test is performed every hour to make sure the sensor and electronics operate well. A Test Lamp is available for regular inspections and end-to-end testing.

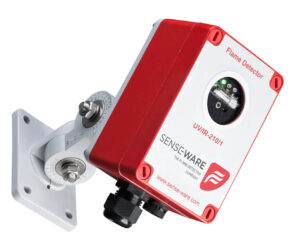

UV/IR Flame Detector by SENSE-WARE

PRODUCT SPECIFICATIONS UV/IR Flame Detector

  • Sensitive to virtually all fires
    including Hydrogen Flames (tested here)
  • Resistant to artificial- and sunlight
  • Automatic sensor test
  • Suitable for indoor and outdoor applications
  • Operating temp.: -40 to +70°C (in Safe Area’s only)
  • GRP housing
  • Relay output for Alarm and Fault
  • Sinking 4-20 mA output (stepped)
  • CPR-EN54-10 certified
  • FM class 3260 Approved
  • ATEX certified: II 3G  Ex nA IIC T4 Gc, II 3D Ex tc IIIC T 71°C Dc IP65, ambient temp.: -25° to +70°C
  • cFMus class 3611 (Nonincendive, Class I, II and III, Div 2), ambient temp.: -25° to +70°C
  • California State Fire Marshal (CSFM) listed
  • 5 Year WARRANTY

UV/IR Flame Detector Models

  • UV/IR-210/1CZ, with CPR/EN54-10 approval and suitable for ATEX cat. 3 for zone 2/22, FM class 3260 and cFMus class 3611 Approved.

Literature

Certificates

  • CPR/EN54-10 (pdf)
  • ATEX cat. 3 for zone 2/22 (pdf)
  • FM class 3611 and 3260 (pdf)

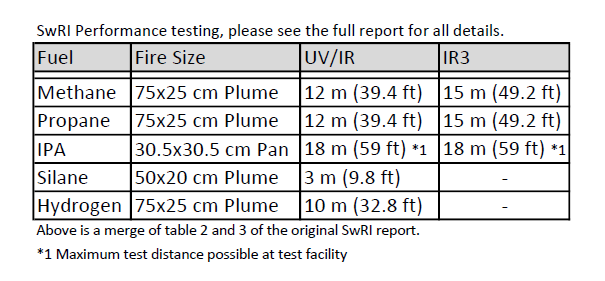

Third Party Testing

  • SwRI USA, Full Test Report (pdf)
