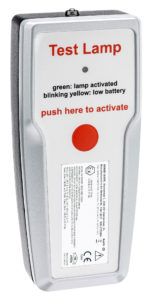

T-940/1Z Test Lamp for Sense-WARE Flame Detectors

Intrinsically Safe Test Lamp

Intrinsically Safe FLAME DETECTOR TEST LAMP T-940/1Z FOR SENSE-WARE FLAME DETECTORS (LONG RANGE)

The SENSE-WARE T-940/1Z Intrinsically Safe flame detector test lamp activates SENSE-WARE UV, UV/IR and IR3 Flame Detectors. The test range for SENSE-WARE Flame Detectors is up to 4 meters (13 ft). The test lamp will activate the internal test sequence and after a successful test the Alarm Outputs of the flame detector will be activated.

FM Approvals certified this Test Lamp to: FM Class 3600:2011, FM Class 3610:2015, FM Class 3810:2005 and FM Class 3260:2000 (see also below). Only very few Test Lamps in the World carry this special marking.

  • UV, UV/IR and IR3 (SENSE-WARE Flame Detectors only) check up to 4 meters (13 ft)
  • Lightweight Aluminum Alloy enclosure
  • Battery operated (4 pce AA Batteries included)

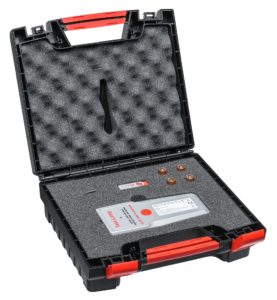

  • Including Carrying Case
  • FM Class 3600:2011, FM Class 3610:2015, FM Class 3810:2005 and FM Class 3260:2000
  • IECEx certified: Ex ib IIC T3 Gb; Ex ib IIC T4 Gb
  • ATEX certified: II 2G Ex ib IIC T3 Gb; II 2G Ex ib IIC T4 Gb
  • USA (division): Intrinsic Safety for Class I Division 1, Groups A, B, C, D; T3 and T4
  • USA (zone): Class I, Zone 1, AEx ia IIC T4 Gb; Class I, Zone 1, AEx ia IIC T3 Gb
  • CANADA (division): Intrinsic Safety for Class I Division 1, Groups A, B, C, D; T3 and T4
  • CANADA (zone): Ex ia IIC T3 Gb; Ex ia IIC T4 Gb
  • T3 Ta = -20°C to +54°C; T4 Ta = -20°C to +46°C

IS Flame Detector test lamp Model

  • TC-940/1Z (including Carrying Case), IECEx/ATEX certified, cFMus Approved

Literature

Certificates

  • IECEx Certificate of Conformity (pdf)
  • ATEX Certificate (pdf)
  • FM Certificate of Conformity for the USA (pdf)
  • FM Certificate of Conformity for CANADA (pdf)
