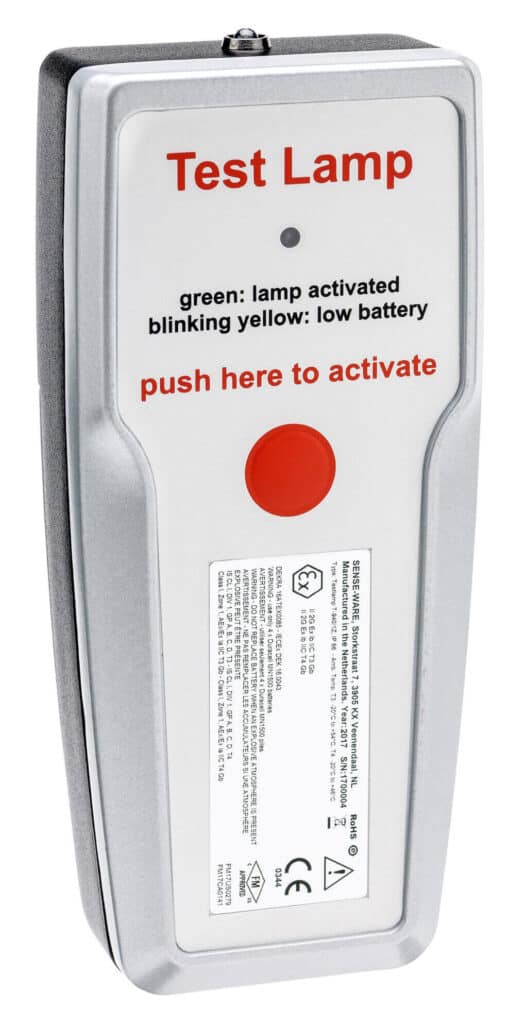

Intrinsically Safe Flame Detector Test Lamp T-940/1Z For SENSE-WARE Flame Detectors (Long Range)
The SENSE-WARE T-940/1Z Intrinsically Safe Flame Detector Test Lamp activates SENSE-WARE UV, UV/IR and IR3 Flame Detectors. The test range for SENSE-WARE Flame Detectors is up to 4 meters (13 ft). The test lamp will activate the internal test sequence and after a successful test the Alarm Outputs of the flame detector will be activated.
FM Approvals certified this Test Lamp to: FM Class 3600:2011, FM Class 3610:2015, FM Class 3810:2005 and FM Class 3260:2000 (see also below). Only very few test lamps in the world carry this special marking.
Product specifications T-940/1Z Test Lamp

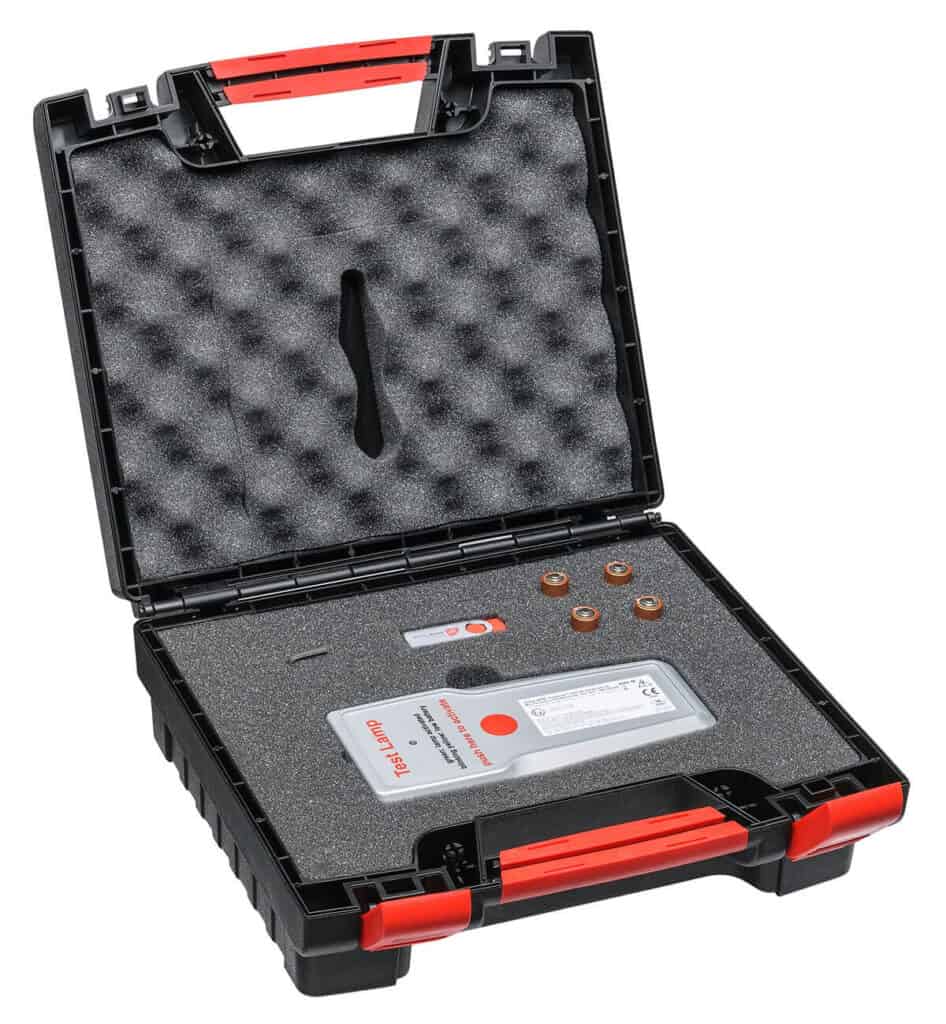

Including Carrying Case
Lightweight Aluminum Alloy enclosure
Battery operated (4 pce AA Batteries included)
UV, UV/IR and IR3 (SENSE-WARE Flame Detectors only) check up to 4 meters (13 ft)
FM Class 3600:2011, FM Class 3610:2015, FM Class 3810:2005 and FM Class 3260:2000
IECEx certified: Ex ib IIC T3 Gb; Ex ib IIC T4 Gb
ATEX certified: II 2G Ex ib IIC T3 Gb; II 2G Ex ib IIC T4 Gb
USA (division): Intrinsic Safety for Class I Division 1, Groups A, B, C, D; T3 and T4
USA (zone): Class I, Zone 1, AEx ia IIC T4 Gb; Class I, Zone 1, AEx ia IIC T3 Gb
CANADA (division): Intrinsic Safety for Class I Division 1, Groups A, B, C, D; T3 and T4
CANADA (zone): Ex ia IIC T3 Gb; Ex ia IIC T4 Gb
T3 Ta = -20°C to +54°C; T4 Ta = -20°C to +46°C
Recommended accessories
IS Flame Detector Test Lamp model
- TC-940/1Z (including Carrying Case), IECEx/ATEX certified, cFMus Approved
